Status: Latest

Specifications

Broadcom BCM2712 2.4GHz quad-core 64-bit ARM Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.3
Dual 4Kp60 HDMI® display output with HDR support
4Kp60 HEVC decoder
LPDDR4X-4267 SDRAM (1GB, 2GB, 4GB, 8GB, and 16GB)
Dual-band 802.11ac Wi-Fi®
Bluetooth 5.0 / BLE
microSD card slot, supports high-speed SDR104 mode
2 × USB 3.0 ports, 2 × USB 2.0 ports
Gigabit Ethernet, PoE+ support (separate HAT required)
2 × 4-lane MIPI camera/display transceivers
PCIe 2.0 x1 interface (requires separate adapter)
5V/5A DC via USB-C, Power Delivery support
Raspberry Pi 40-pin header
Real-time clock (RTC), powered from external battery
Power button

Buy

Specifications

Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.8GHz
1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on model)
2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
Gigabit Ethernet
2 USB 3.0 ports; 2 USB 2.0 ports
Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
2 × micro-HDMI® ports (up to 4kp60 supported)
2-lane MIPI DSI display port
2-lane MIPI CSI camera port
4-pole stereo audio and composite video port
H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
OpenGL ES 3.1, Vulkan 1.0
Micro-SD card slot for loading operating system and data storage
5V DC via USB-C connector (minimum 3A*)
5V DC via GPIO header (minimum 3A*)
Power over Ethernet (PoE) enabled (requires separate PoE HAT)
Operating temperature: 0 – 50 degrees C ambient

Buy

Specifications

Buy

Specifications

Note: Raspberry Pi doesn't sell this board anymore.

Specifications

Sources:

Raspberry Pis in keyboards

Buy

Specifications

2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
16GB LPDDR4X-4267 SDRAM
Internal 256GB Raspberry Pi SSD
Support for M.2 NVMe SSDs up to 2280 form factor
84-, 85- or 88-key mechanical keyboard (depending on regional variant)
Gateron KS-33 Blue low-profile switches
Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac Wi-Fi®
Bluetooth 5.0, BLE
Gigabit Ethernet
2 × USB 3.0 port and 1 × USB 2.0 port
Horizontal 40-pin GPIO header
2 × micro HDMI® port (supports up to 4Kp60)
H.265 (4Kp60 decode)
OpenGL ES 3.1 graphics, Vulkan 1.3
SD card support: microSD card slot for operating system and data storage
Power: 5V DC via USB-C connector

Pictures

Buy

Specifications

2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
8GB LPDDR4X-4267 SDRAM
Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac Wi-Fi®
32GB Class A2 microSD included
Bluetooth 5.0, BLE
Gigabit Ethernet
2 × USB 3.0 port and 1 × USB 2.0 port
Horizontal 40-pin GPIO header
2 × micro HDMI® port (supports up to 4Kp60)
H.265 (4Kp60 decode)
OpenGL ES 3.1 graphics, Vulkan 1.3
SD card support: microSD card slot for operating system and data storage
Keyboard: 78-, 79- or 83-key compact keyboard (depending on regional variant)
Power: 5V DC via USB connector

Buy

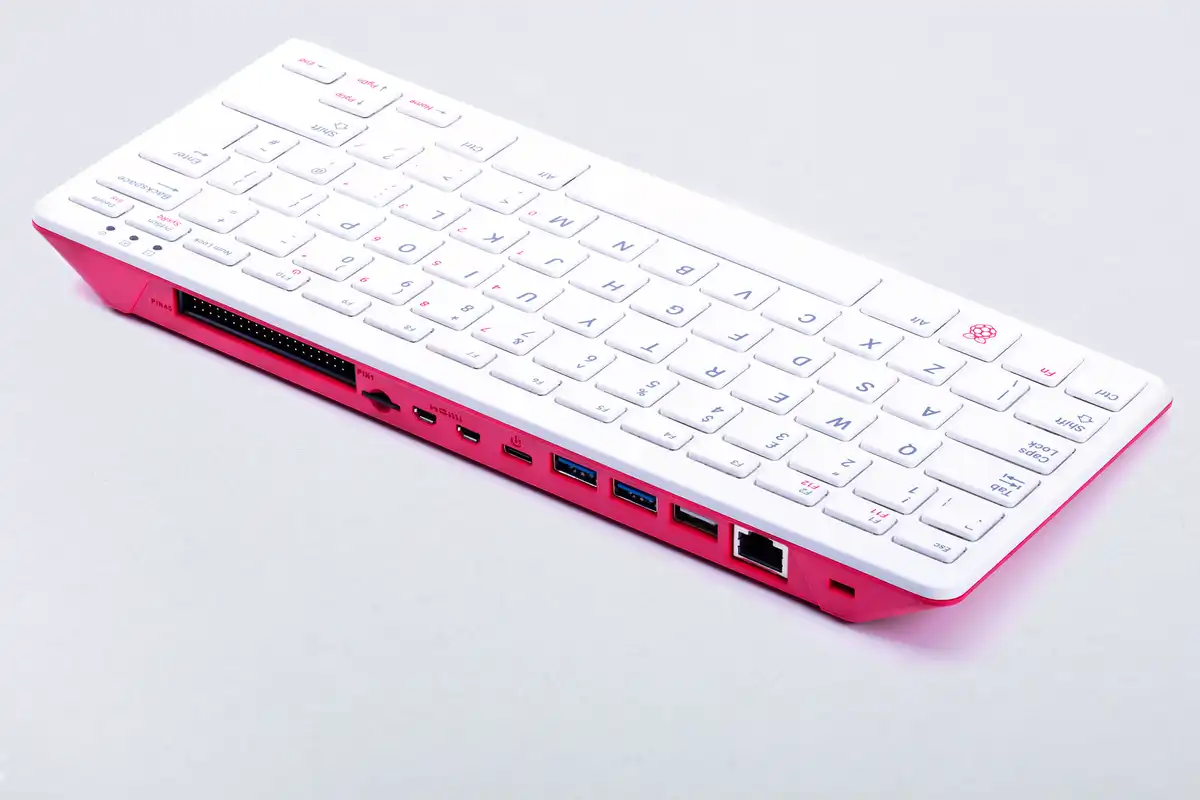

Specifications

Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.8GHz
4GB LPDDR4-3200
Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac wireless LAN
Bluetooth 5.0, BLE
Gigabit Ethernet

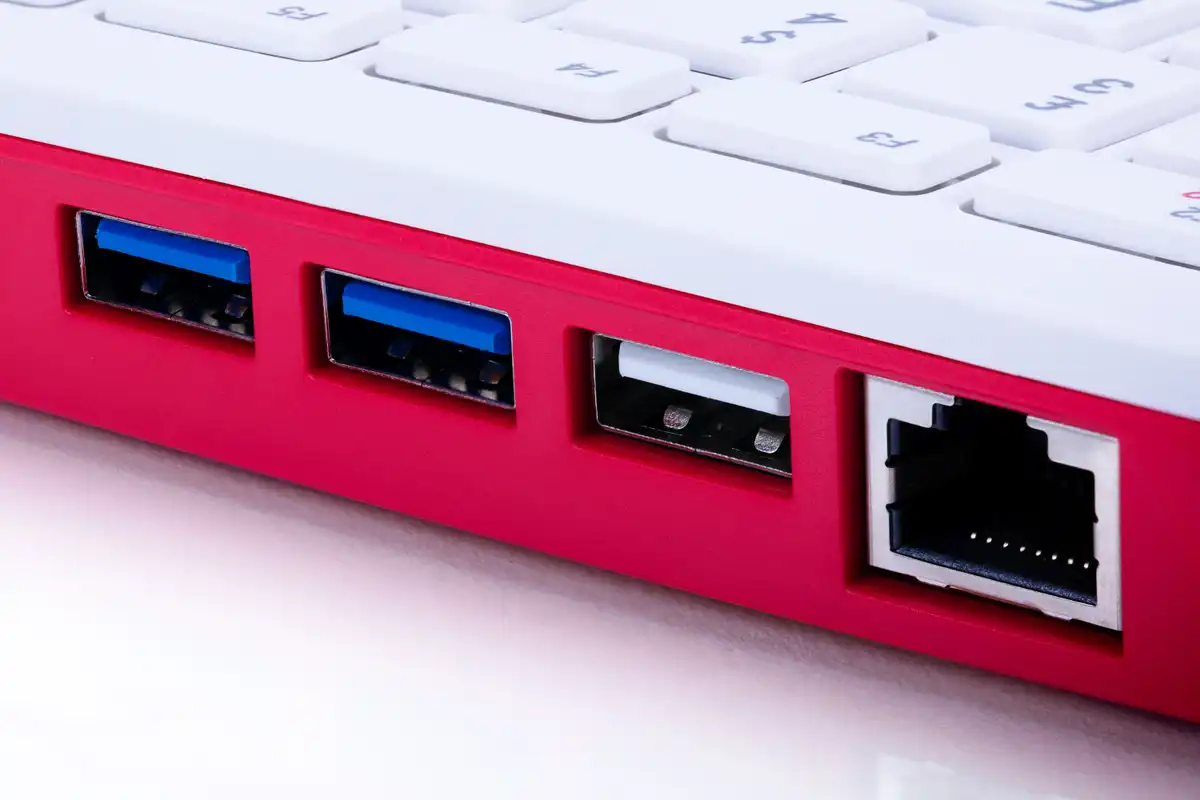

2 × USB 3.0 and 1 × USB 2.0 ports
Horizontal 40-pin GPIO header
2 × micro HDMI® ports (supports up to 4Kp60)
H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.1, Vulkan 1.0
MicroSD card slot for operating system and data storage

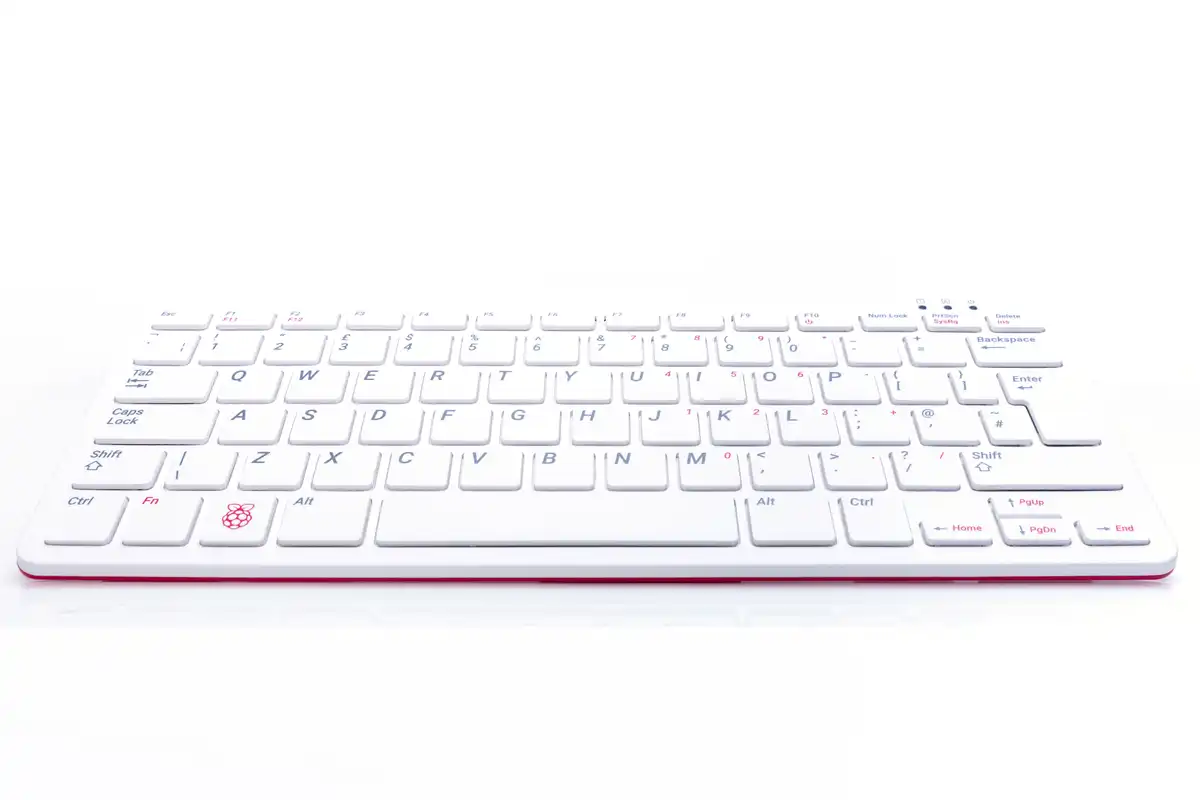

78- or 79-key compact keyboard (depending on regional variant)
5V DC via USB connector
Operating temperature: 0°C to +50°C ambient
Maximum dimensions 286 mm × 122 mm × 23 mm
